Part 1: Build A Scalable Web Coding Playground Infrastructure

Tags = [ Technology ]

I remember the first time I used a sophisticated online coding playground like codedamn. It wasn't just a single-file snippet editor. It was a full, containerized environment where I could:

  • Spin up an entire React or Next.js app with preview.
  • Run a Java program or a Go code.
  • Install dependencies, run builds, and see live output—all in the browser.

The experience was incredibly fast, smooth, and reliable. I was blown away. And immediately, the engineer in me asked: "How on earth is this built?"

This blog is the story of my deep dive into that question. It's not a tutorial for a finished product, but a research log of the architectural problems I identified and the potential solutions I explored to build such a system at scale.

The Core Challenge: Beyond Single-File Snippets

Most basic playgrounds are simple. You paste code into a <textarea>, it gets POSTed to an API, run in a sandboxed Lambda function, and the result comes back. But that model breaks down completely when you need:

  • A persistent, stateful environment.
  • Multiple files and a real filesystem.
  • Running servers and processes.
  • An interactive terminal.

The fundamental unit shifts from a function to a container (or a virtual machine). Each user session needs its own isolated, containerized environment. The challenge becomes how to manage thousands of these containers efficiently.

Problem 1: The Shared Filesystem

Each interactive session requires at least two components working in tandem:

  1. A WebSocket Server: Handles real-time events like file edits, terminal keystrokes, and UI updates.
  2. A Runtime Container: The language-specific environment (e.g., Node, Python, Go) that executes the code.

Both need instantaneous access to the exact same files. When a user edits index.js, the runtime container must see that change immediately.

I researched several ways to achieve this shared storage:

  • AWS EFS (Elastic File System): A managed NFS. I chose this because i thought i could save user coding projects in the cloud itself without extra hazzles.It works, but each new mount can take ~10 seconds to initialize. This delay kills the "real-time" feel you expect from a modern IDE.
  • S3 with S3FS: Tempting because of S3's durability and scale. However, S3 is object storage, not a POSIX filesystem. Operations like ls or editing a small file in a large directory become painfully slow.
  • Docker Volumes: The simplest and fastest option. You create a volume on the host machine, mount it into both containers, and they see the same files instantly. No network latency, no initialization penalty.

Verdict: For pure performance and simplicity, a shared volume (or a hostPath) is the winner. This simplicity becomes a key constraint later.

Problem 2: Orchestrating the Chaos

You can't just run docker run on a server for every new user. You need a system to orchestrate hundreds of dynamic, short-lived environments.

My Very First Attempt: ECS

Initially, I was using AWS ECS to spawn a coding playground per session. It looked promising on paper: I could define tasks, attach storage (EFS), and scale out.

But the problems I mentioned earlier (slow mounts with EFS, clunky debugging, slow feedback loops) made development extremely worse. Each iteration took too long, and the experience felt nowhere near the "instant" responsiveness of a coding IDE.

Another big factor: I was broke (^-^) and simply couldn’t afford the rising AWS bills for experimentation. Every failed iteration or slow debug cycle felt like I was burning cash faster than my containers were booting.

So yeah… I started looking for something simpler, cheaper, and faster.

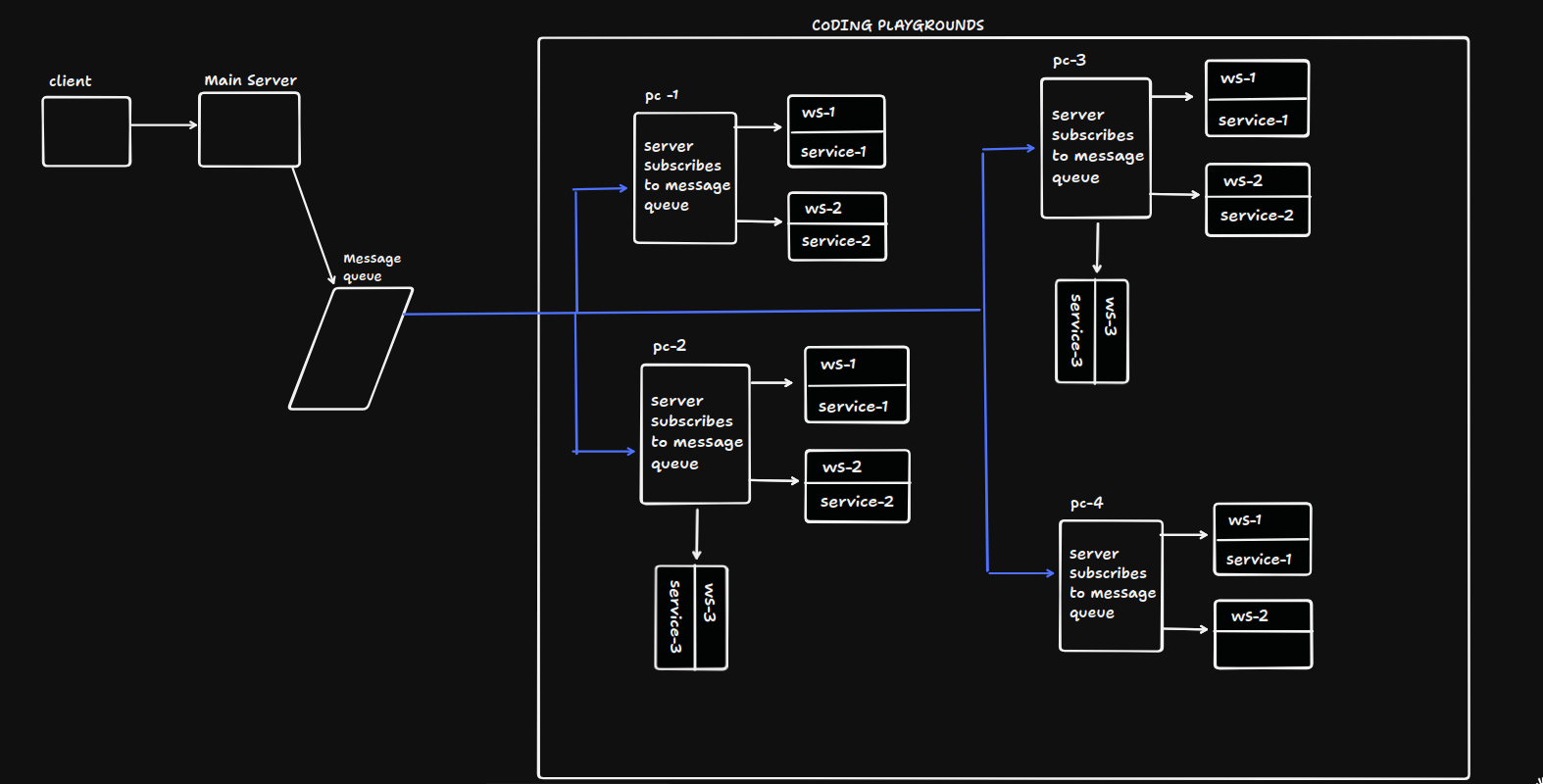

My Next Attempt: A Queue + Worker Model

To move away from ECS overhead, I experimented with a message queue + horizontal scaling approach:

  • A main API server received requests to create a new playground.
  • It published a message with a sessionId and configuration into a message queue (like Redis or RabbitMQ).
  • A pool of worker servers consumed the queue. Each worker would:
    • Pull a job.
    • Clone a base template repository.
    • Use docker-compose to spin up the WebSocket and runtime containers, binding them to the shared volume and mapping ports.

This was horizontally scalable: I could add more worker servers to handle more concurrent playgrounds.

What I learned: This worked better than ECS for quick experimentation, but it came with its own problems. I was essentially building a brittle, custom orchestration layer. Managing lifecycle, cleaning up containers, and handling service discovery became messy fast.

At this point, I realized I was reinventing wheels Kubernetes already solved.

Problem 2.1: The Networking Nightmare

Every playground might need to expose a web server (e.g., a Next.js app on port 3000). How do you route user traffic to the correct container?

  • Static Port Mapping: Assign a unique external port to each session (e.g., user A gets :4001, user B gets :4002). This is a nightmare to manage and scale. You quickly run out of ports, and configuring the reverse proxy dynamically is messy.
  • Dynamic Reverse Proxy: I tried Traefik and Caddy with their Docker provider plugins. They can automatically discover containers and configure routes. This was closer. You could route user1.yourdomain.com to the correct container.

But making this rock-solid with wildcard DNS and TLS, especially in development, felt complex. I was spending more time on plumbing than on the product.

The "Aha!" Moment: Embracing Kubernetes

I realized I was painstakingly reassembling pieces that Kubernetes provides out of the box. Instead of fighting it, I designed a new architecture around it.

Here’s how a scalable playground system can work on Kubernetes:

  1. Session as a Job: Each coding environment is defined as a Kubernetes Job. This Job is responsible for creating the Pod that contains both the WebSocket server and runtime containers, sharing a volume for the code.

  2. Internal Service: Each Job gets its own headless Kubernetes Service. This provides a stable internal DNS name (e.g., session-abc123.default.svc.cluster.local) for the Pod, allowing other components in the cluster to talk to it easily.

  3. Ingress for External Traffic: A single Ingress Controller (like Traefik or Nginx) handles all incoming HTTP/S traffic.

    • A wildcard DNS record (*.playground.yourdomain.com) points to the Ingress.
    • The Ingress uses a simple path or hostname-based rule: a request to s1.playground.yourdomain.com is routed to the Service for session s1.

  4. Local Development: For testing, you can use minikube or kind. Adding a line to your /etc/hosts file (127.0.0.1 s1.playground.yourdomain.com) and configuring the Ingress lets you test the entire flow seamlessly on your local machine.

Kubernetes solves the hard problems elegantly:

  • Orchestration: It manages the lifecycle of the Pods (containers).
  • Networking: Services and Ingress handle discovery and routing.
  • Storage: Persistent Volume Claims (PVCs) abstract the shared storage perfectly.
  • Scaling: The entire system can scale horizontally across a cluster of nodes.

Key Takeaways from My Research

  1. Start Simple, Then Scale: A simple Docker-based worker model is a great starting point to validate the idea. Don't jump to Kubernetes on day one.
  2. Volumes Over Networked FS: For the low-latency filesystem needs of an IDE, local volumes are superior to networked filesystems like EFS or S3FS at the beginning.
  3. You Aren't Google (Yet): Avoid building custom orchestration. Kubernetes is a complex tool, but it's a solved complex tool. Leveraging it lets you focus on your application logic instead of infrastructure plumbing.
  4. Ingress is Key: A wildcard DNS record paired with a modern Ingress Controller is the cleanest way to handle routing to dynamic, multi-tenant services.

Closing Thoughts

The magic of platforms like codedamn isn't just in the UI—it's in the incredibly sophisticated cloud-native infrastructure that powers it. My journey to understand it was a deep dive into containers, orchestration, and distributed systems design.

While I set out to build a playground, what I really built was a blueprint. The final, production-grade system would need more: resource limits, security policies, permission management in pods, session timeouts, and snapshotting. But the foundation is clear: Kubernetes provides the primitives to make this not just possible, but elegant and scalable.

This post just scratches the surface.

In the next part, I’ll either:

  • Dig deeper into solving some inefficiencies in the current infra design,
  • Or break down the Kubernetes Job model and the application layer that ties it all together.

And maybe after that… yes, the Language Server Protocol (LSP) integration story awaits. 🚀
